Grundfos UP 15-14B PM

8W COMFORT Basic Circulator Pump

Part Number: SHWSHWP0010

(0 review)

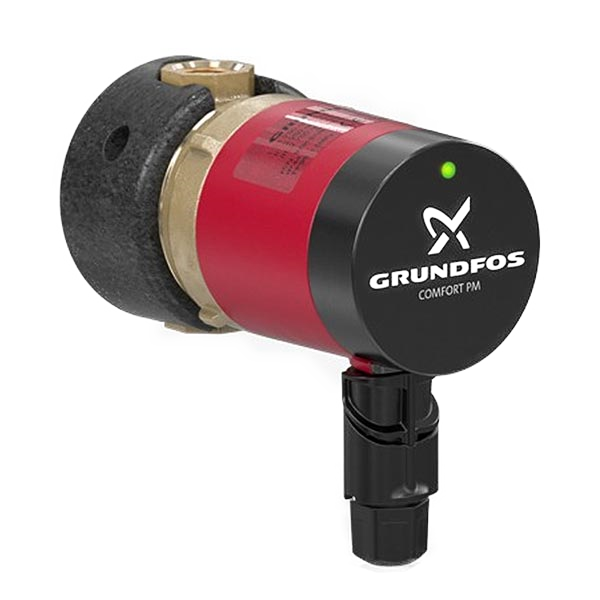

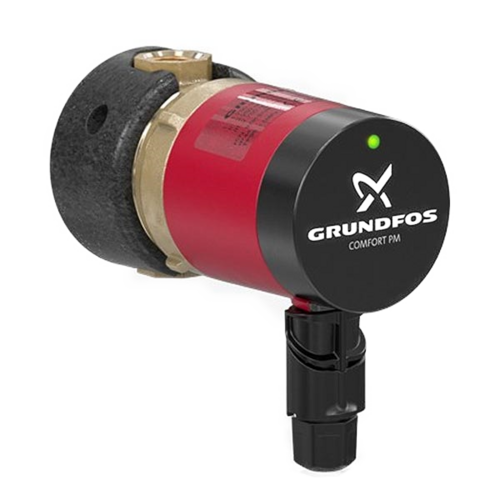

Grundfos COMFORT 15-14 B PM

The Grundfos Comfort UP15-14B PM 8 watt Circulator pump with a high efficiency permanent magnet motor.is designed for domestic hot-water systems



(SHWSHWP0010)


Grundfos UP 15-14-B PM Installation Instruction Manual

Click Here to Download Instruction Manual

Grundfos Comfort Series literature

Grundfos Comfort Series literature

Product name-Grundfos COMFORT 15-14 B PM

Liquid temperature: +2 °C to +95°C
Maximum system pressure: 10 bar
Pump housing: Brass
Supply voltage: 1 x 240 Volt 50/60 Hz, +/-10%
Enclosure: Suitable for undercover installation
Electrical connection: Cable 1.5 m with plug

Technical
Speed no-1
Head max-14 dm
TF class-95
Approvals on nameplate-CE,VDE,WEEE
Materials
Pump housing-Brass
Impeller-Composite
Installation
Maximum operating pressure-10 bar
Type of connection-Rp
Pipe connection-1/2

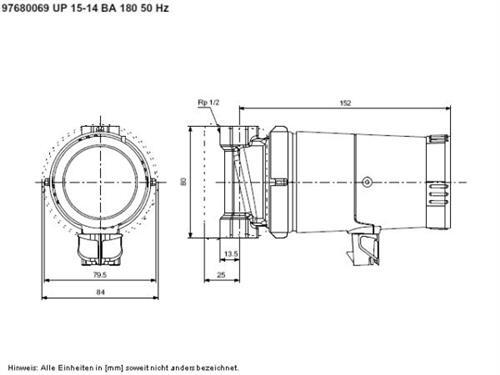

Port-to-port length-80 mm
Liquid
Pumped liquid-Water
Liquid temperature range-2 .. 95 °C
Selected liquid temperature-60 °C
Density-983.2 kg/m³
Electrical data
Max. power input-7 W
Mains frequency-50 / 60 Hz
Rated voltage [V]-1 x 230 V
Current in speed-3/0.07 A
Capacitor size-run/0.6 µF
Enclosure class (IEC 34-5)IP44
Insulation class (IEC 85)F
Built-in motor protection-ELECT.
Thermal protec-Impedance protected
Controls
Operation mode include-NONE
Others Information
Net weight-0.86 kg
Gross weight-0.96 kg
Shipping volume-0.003 m³
Sales region-Australia
Country of origin-DE

SKU SHWSHWP0010
Brand Grundfos
Unit Of Measure ea
