PVC Pipe Cladding A20 White - Size 29, 1.22m Length (508mm Insulation OD)

Max Insulation OD - 508mm

Part Number: INSJA20W029

(0 review)

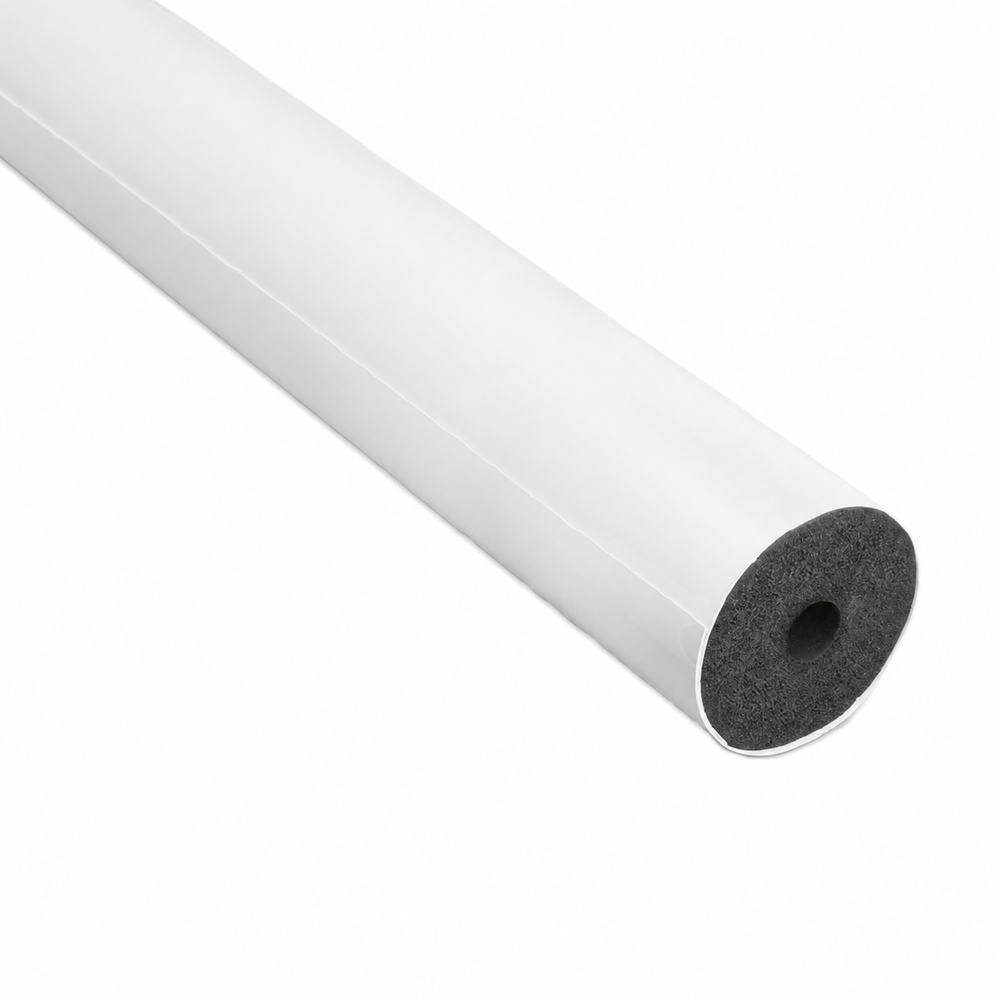

A20 rigid PVC pipe jacketing, size 29 — protects the underlying pipe insulation on exposed pipework from mechanical damage, moisture ingress, and UV/sun degradation. Supplied as a straight jacket in 1220mm lengths with a high-gloss white finish, suited to rooftop, plant room, and other outdoor or exposed pipe-insulation applications.

(INSJA20W029)

  • Material: Rigid PVC, UV stabilised, self-extinguishing, non-conductive
  • Grade: A20 (0.5mm nominal)
  • Max. insulation O.D. covered: 508mm (20.0in)
  • Jacket length: 1220mm
  • Recommended overlap: 100mm minimum
  • Operating temperature range: -29°C to 66°C
  • Colour: White, gloss exterior
  • No AS1530.3 fire-test claim for this product.
SKU INSJA20W029
Brand Lagline
  • UV-stabilised for long-term outdoor exposure
  • Non-conductive, self-extinguishing PVC
  • Protects insulation from mechanical knocks, weather, and moisture
  • Lightweight, easy to install and cut to length
