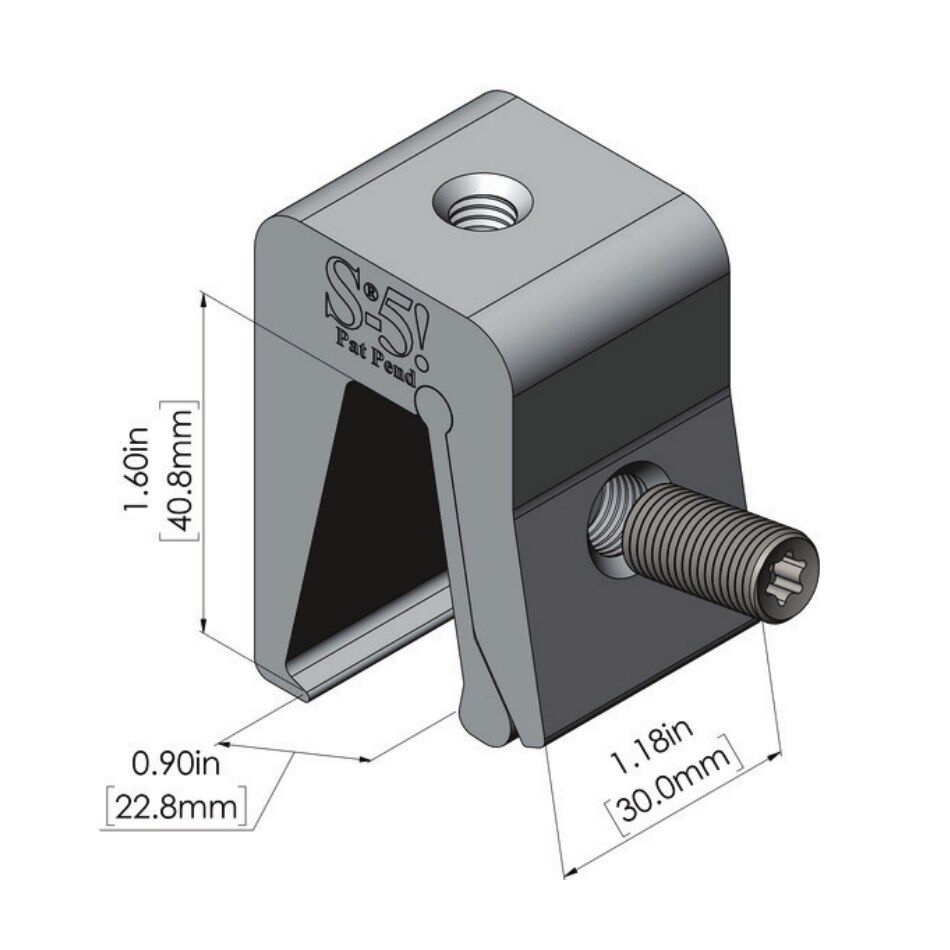

S-5! - S-5-NH 1.5 Mini NB Clamp

Part Number: S-5-NH-1.5-CLAMP-MINI-NB

(0 review)

The S-5! S-5-NH 1.5 Mini NB Clamp is a compact clamp from the S-5-N nail strip family, sized for 1.5in nail strip profiles and supplied without a hex bolt (NB) for a streamlined, economical fit.

SUITS THESE ROOF PROFILES

  • 1.5in nail strip standing seam profiles
  • Similar profiles to Taylor Metals Easy Lock and ASC Skyline Roofing families (1.5in variant)

SUPPLIED WITH

  • 1 x S-5-NH 1.5 Mini clamp body
  • Stainless setscrews (no hex bolt included — NB variant)

ALSO AVAILABLE

  • S-5! S-5-N 1.5 Clamp / Mini (1.5in nail strip, standard)
  • S-5! S-5-N Clamp / Mini (1in nail strip)

(S-5-NH-1.5-CLAMP-MINI-NB)

S-5-NH 1.5 Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

  • Material: Cast aluminium alloy clamp body with reversible hinge insert
  • Hardware: 300-series stainless steel setscrews (mounting bolt not included — "No Bolt" variant)
  • Seam compatibility: 1.5in (38mm) wider nail-strip standing seam profiles
  • Finish: Mill/clear anodised aluminium
  • Certifications: Tested to ICC-ES AC472 mechanical attachment criteria
SKU S-5-NH-1.5-CLAMP-MINI-NB
Brand S-5
  • Non-penetrating, no-drill attachment — preserves the metal roof's watertightness and manufacturer warranty
  • Reversible hinge-insert design forms to the seam profile, protecting the panel finish at the point of attachment
  • Wider clamp throat accommodates most 1.5in (38mm) nail-strip profiles, including VicWest Prestige and NewTech FF150
  • Compact "No Bolt" mini body for lighter-duty solar, snow retention and utility mounting attachments
  • Corrosion-resistant cast aluminium alloy body suited to coastal and harsh Australian conditions
