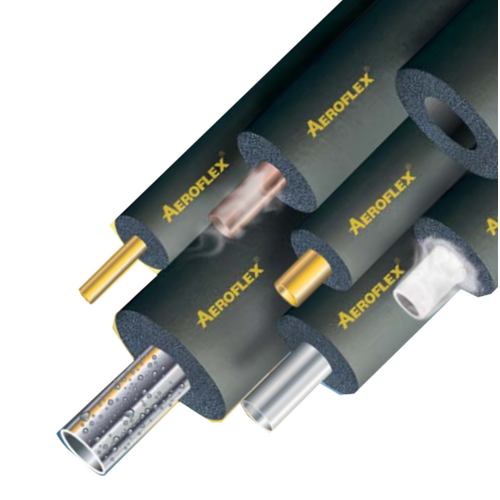

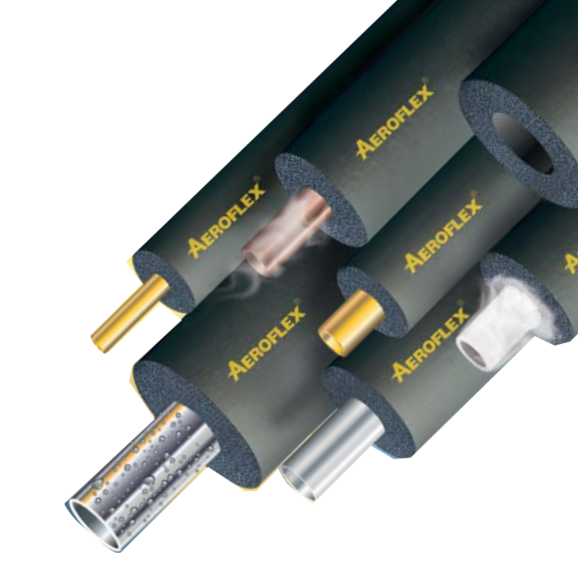

Aeroflex Pipe Insulation 2m x 25mm wall x 67mm ID

Part Number: vM25067

(0 review)

Aeroflex Tube Insulation Aeroflex Closed Cell Tube Insulation is easily installed to pipe or tubing. The factory-applied coating of talcum powder on the thick and smooth inner skin helps facilitate and speed up pre-assembly lines. When applied to existing lines, tubing should be slit length-wise and snapped into place. Slitting can be done on the job easily with razors, blades, knives or shears. Cut edges and joints can be sealed with Aeroseal Adhesive (neoprene base contact cement) Temperature Range Aeroflex tubes and sheet insulate and prevent condensation when used in operating temperatures down to -57°c and insulate against heat loss up to 125°c. The thermal efficiency and water vapour permeability of Aeroflex will not be affected within these recommended operating temperature ranges.

(vM25067)

Main features

  • High quality synthetic EPDM-based elastomer completely closed-cell structure
  • Excellent UV resistance
  • Supplied in lengths of 2.0 metres
  • CFC-free and PVC-free
  • High weather and ozone resistance
  • Aeroflex Standard up to -57°c to 125°c
  • Operating temperature
  • Retains flexibility at temperatures as low as -40°c
  • Lambda value 0.039 W/m*K or better at +40°c
  • Self-extinguishing according to UP94-VO standard, no fireball drops
  • Does not cause copper or stainless steel corrosion
  • <5 ppb (0.005 ppm) Nitrosamine content

      Fire Rating

  • Aeroflex to Australian Standard AS1530.3 - 1999
  • Ignitability Index - 0 (range 0 - 20)
  • Spread of Flame Index - 0 (range 0 - 10)
  • Heat Evolved Index - 0 (range 0 - 10)
  • Smoke Developed Index - 3 (range 0 - 10)
  • To be read in conjunction with the Building Code of Australia
SKU vM25067
Brand Aeroflex
Shipping Length 2.000m
Unit Of Measure Meters
