S-5! - S-5-N Clamp

Part Number: S-5-N-CLAMP

(0 review)

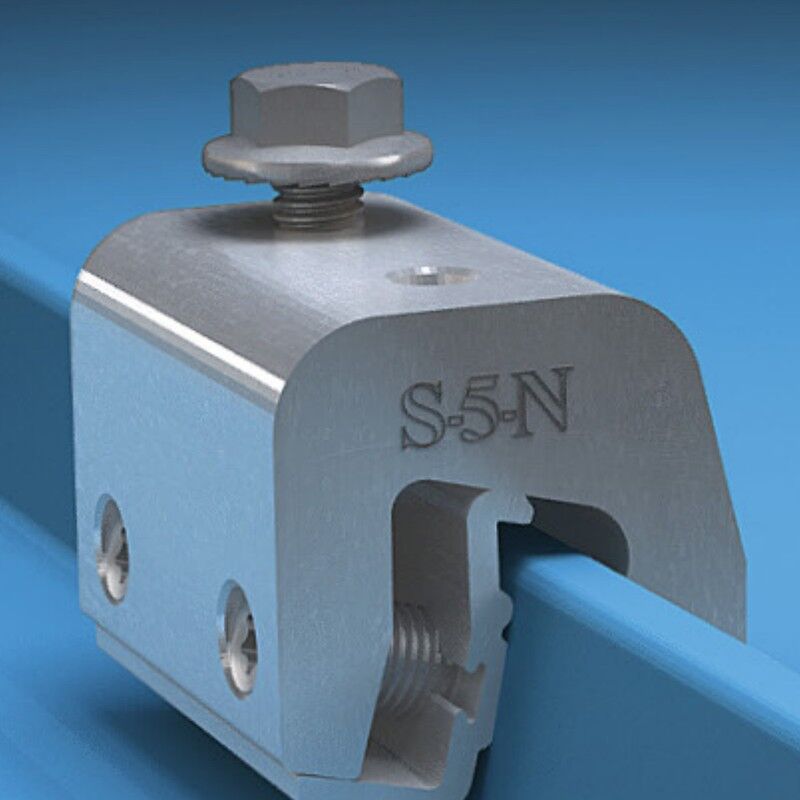

The S-5! S-5-N Clamp is a non-penetrating clamp engineered for 1in nail strip standing seam metal roofs.

SUITS THESE ROOF PROFILES

  • Taylor Metals' Easy Lock™
  • ASC Building Products' Skyline Roofing®
  • New Tech Machinery's FF100
  • Other similar 1in nail strip profiles

SUPPLIED WITH

  • 1 x S-5-N clamp body
  • Stainless setscrews and mounting hardware

ALSO AVAILABLE

  • S-5! S-5-N Mini Clamp (compact version)
  • S-5! S-5-N 1.5 Clamp / Mini (for 1.5in nail strip)

(S-5-N-CLAMP)

S-5-N Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

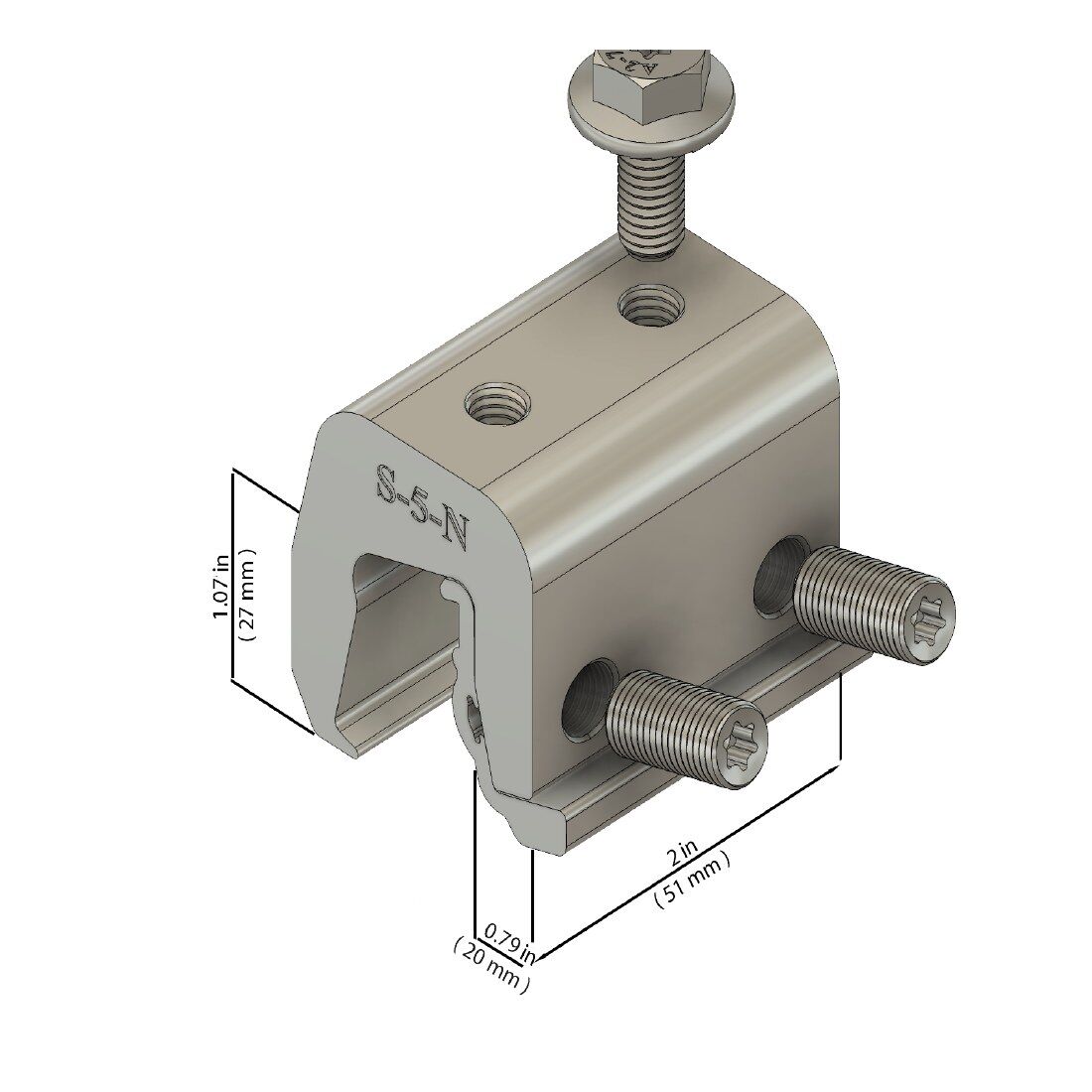

  • Material: Cast aluminium alloy clamp body
  • Hardware: 300-series stainless steel setscrews and mounting bolt
  • Seam compatibility: 1in (25mm) nail-strip standing seam profiles
  • Finish: Mill/clear anodised aluminium
  • Certifications: Tested to ICC-ES AC472 mechanical attachment criteria
SKU S-5-N-CLAMP
Brand S-5
  • Non-penetrating, no-drill attachment — preserves the metal roof's watertightness and manufacturer warranty
  • Twin stainless setscrews bear directly on the seam for a secure, high-clamping-force grip
  • Corrosion-resistant cast aluminium alloy body suited to coastal and harsh Australian conditions
  • Engineered and load-tested specifically for 1in nail-strip standing seam profiles
  • Compatible with S-5! PVKIT and GripperFix accessories for solar, snow retention and utility mounting
