S-5! - S-5-V Clamp

Part Number: S-5-V-CLAMP

(0 review)

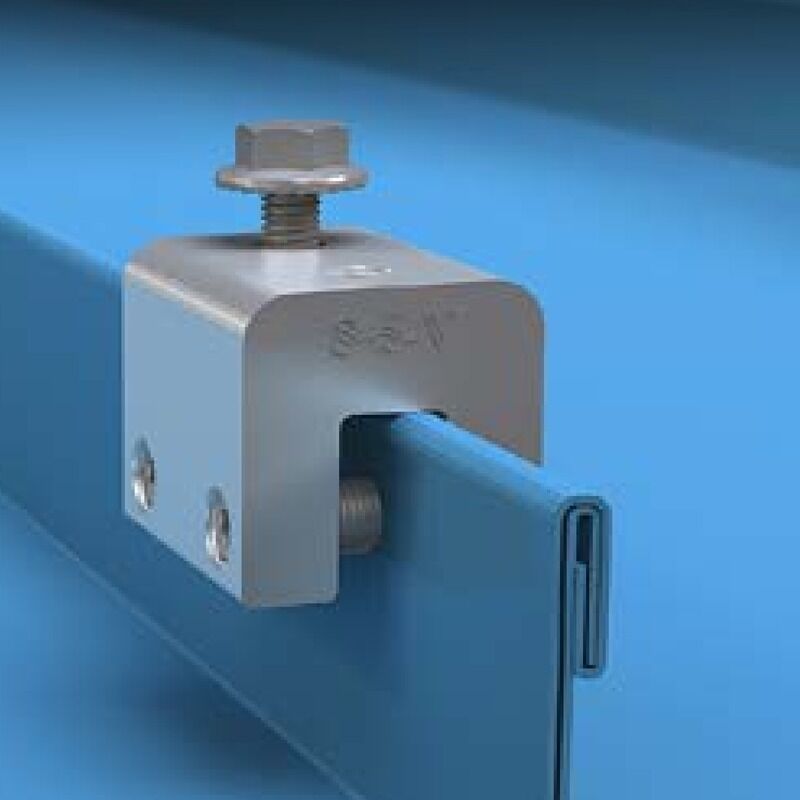

The S-5! S-5-V Clamp mounts snow guards, walkways, solar arrays and other rooftop equipment to double-folded (trapezoidal) snap-lock vertical standing seams, without penetrating the roof.

SUITS THESE ROOF PROFILES

  • Double-folded / trapezoidal snap-lock vertical standing seam profiles
  • Not suitable for face-fastened trapezoidal or corrugated panels

SUPPLIED WITH

  • 1 x S-5-V clamp body
  • Stainless setscrews and mounting hardware

ALSO AVAILABLE

  • S-5! S-5-V Mini Clamp (compact version)
  • S-5! S-5-U Clamp (broader profile compatibility)

(S-5-V-CLAMP)

S-5-V Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

  • Material: Aluminium alloy clamp body
  • Hardware: Stainless steel setscrews and mounting hardware
  • Seam compatibility: Double-folded / trapezoidal snap-lock vertical standing seam profiles
  • Not suitable for face-fastened trapezoidal or corrugated panels
  • Certifications: Tested to ICC-ES AC472 mechanical attachment criteria
SKU S-5-V-CLAMP
Brand S-5
  • Non-penetrating attachment for double-folded (trapezoidal) snap-lock vertical standing seams
  • Mounts snow guards, walkways, solar arrays and other rooftop equipment without penetrating the roof
  • Twin stainless setscrews bear directly on the seam for a secure, high-clamping-force grip
  • Corrosion-resistant aluminium alloy body suited to coastal and harsh Australian conditions
  • Full-size body for heavier-duty rooftop attachment loads
