S-5! - S-5-N 1.5 Mini Clamp

Part Number: S-5-N-1.5-MINI-CLAMP

(0 review)

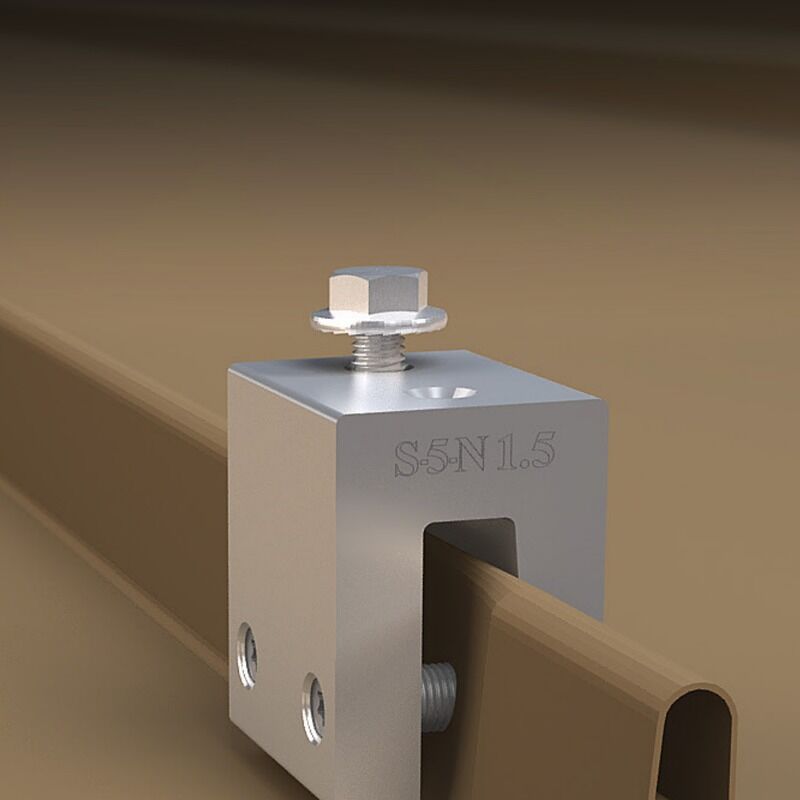

The S-5! S-5-N 1.5 Mini Clamp is a compact, non-penetrating clamp for 1.5in nail strip standing seam metal roofs.

SUITS THESE ROOF PROFILES

  • 1.5in nail strip standing seam profiles
  • Similar profiles to Taylor Metals Easy Lock and ASC Skyline Roofing families (1.5in variant)

SUPPLIED WITH

  • 1 x S-5-N 1.5 Mini clamp body
  • Stainless setscrews and mounting hardware

ALSO AVAILABLE

  • S-5! S-5-N 1.5 Clamp (full size)
  • S-5! S-5-N Clamp / Mini (1in nail strip)

(S-5-N-1.5-MINI-CLAMP)

S-5-N 1.5 Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

  • Material: Cast aluminium alloy clamp body
  • Hardware: 300-series stainless steel setscrews and mounting bolt
  • Seam compatibility: 1in (25mm) nail-strip standing seam profiles — mini/economy size
  • Finish: Mill/clear anodised aluminium
  • Certifications: Tested to ICC-ES AC472 mechanical attachment criteria
SKU S-5-N-1.5-MINI-CLAMP
Brand S-5
  • Non-penetrating, no-drill attachment — preserves the metal roof's watertightness and manufacturer warranty
  • Compact mini body — an economical solution for lighter-duty solar, snow retention and utility mounting attachments
  • Twin stainless setscrews bear directly on the seam for a secure, high-clamping-force grip
  • Corrosion-resistant cast aluminium alloy body suited to coastal and harsh Australian conditions
  • Engineered and load-tested specifically for 1in nail-strip standing seam profiles
