S-5! - S-5-V Mini Clamp

Part Number: S-5-V-MINI-CLAMP

(0 review)

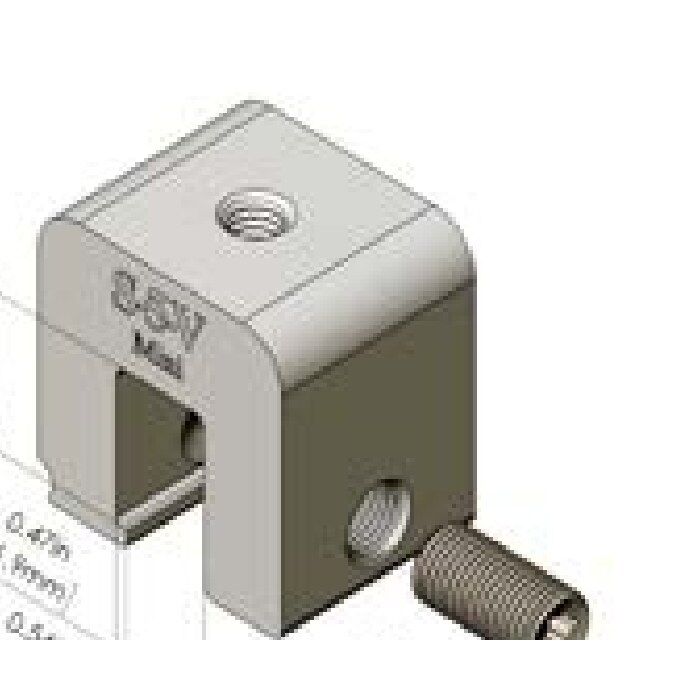

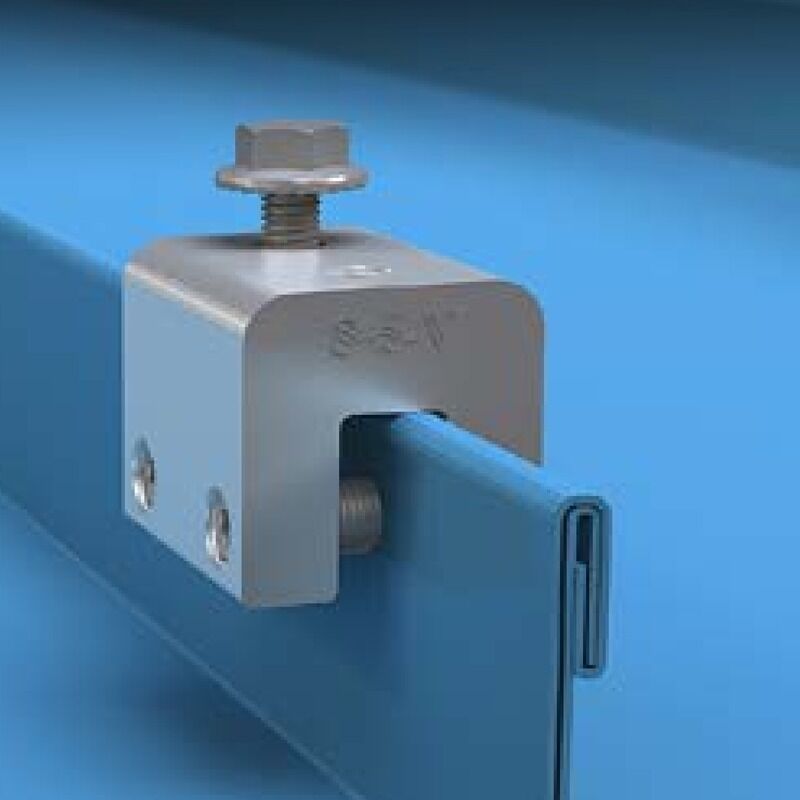

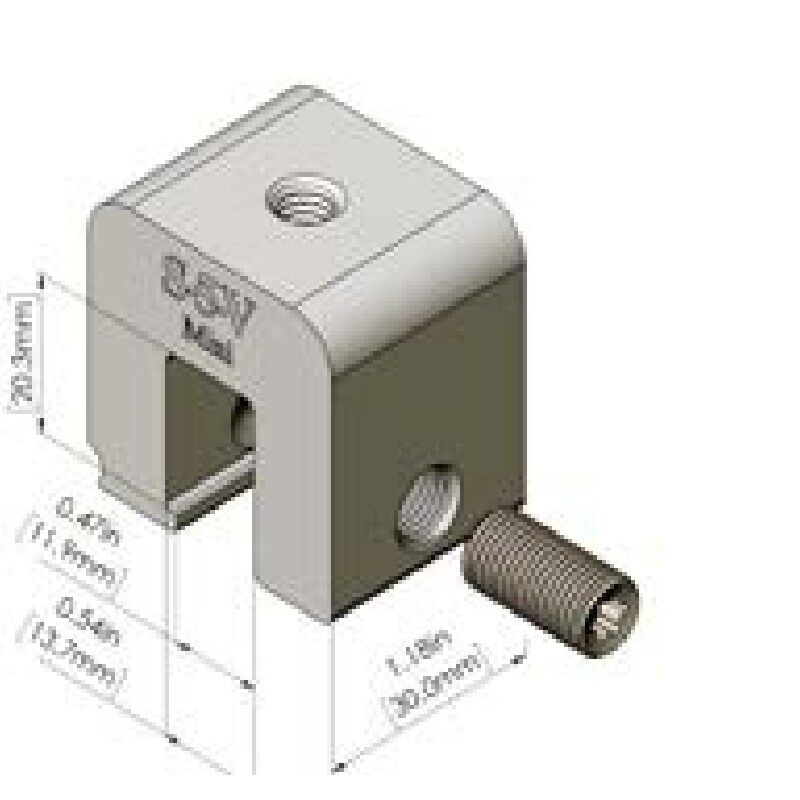

The S-5! S-5-V Mini Clamp is a compact, non-penetrating clamp for double-folded (trapezoidal) snap-lock vertical standing seams — a smaller-footprint alternative to the full-size S-5-V Clamp.

SUITS THESE ROOF PROFILES

  • Double-folded / trapezoidal snap-lock vertical standing seam profiles
  • Not suitable for face-fastened trapezoidal or corrugated panels

SUPPLIED WITH

  • 1 x S-5-V Mini clamp body
  • Stainless setscrews and mounting hardware

ALSO AVAILABLE

  • S-5! S-5-V Clamp (full size)
  • S-5! S-5-U Clamp (broader profile compatibility)

(S-5-V-MINI-CLAMP)

S-5-V Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

  • Material: Aluminium alloy clamp body
  • Hardware: Stainless steel setscrews and mounting hardware
  • Seam compatibility: Double-folded / trapezoidal snap-lock vertical standing seam profiles
  • Not suitable for face-fastened trapezoidal or corrugated panels
  • Certifications: Tested to ICC-ES AC472 mechanical attachment criteria
SKU S-5-V-MINI-CLAMP
Brand S-5
  • Non-penetrating, compact clamp for double-folded (trapezoidal) snap-lock vertical standing seams
  • Smaller-footprint, more economical alternative to the full-size S-5-V Clamp
  • Stainless setscrews bear directly on the seam for a secure grip
  • Corrosion-resistant aluminium alloy body suited to coastal and harsh Australian conditions
  • Suits snow guards, solar arrays and other lighter-duty rooftop attachments
