S-5! - S-5-H Mini Clamp

Part Number: S-5-H-MINI-CLAMP

(0 review)

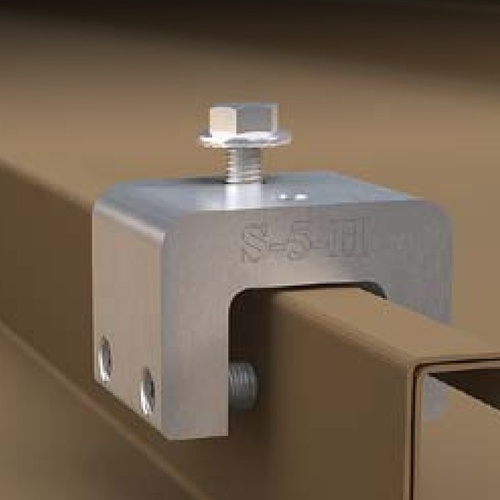

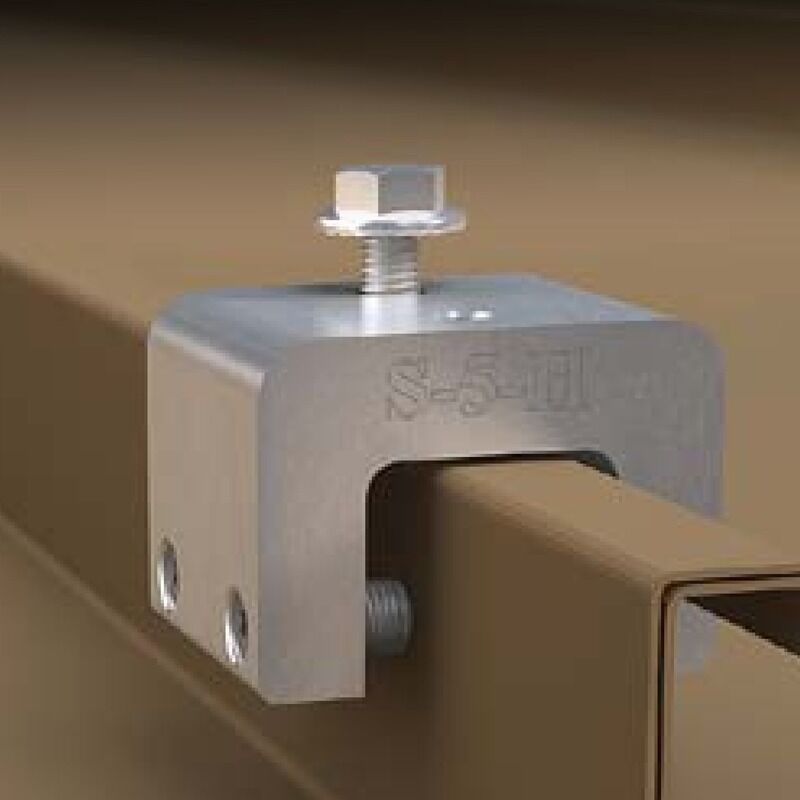

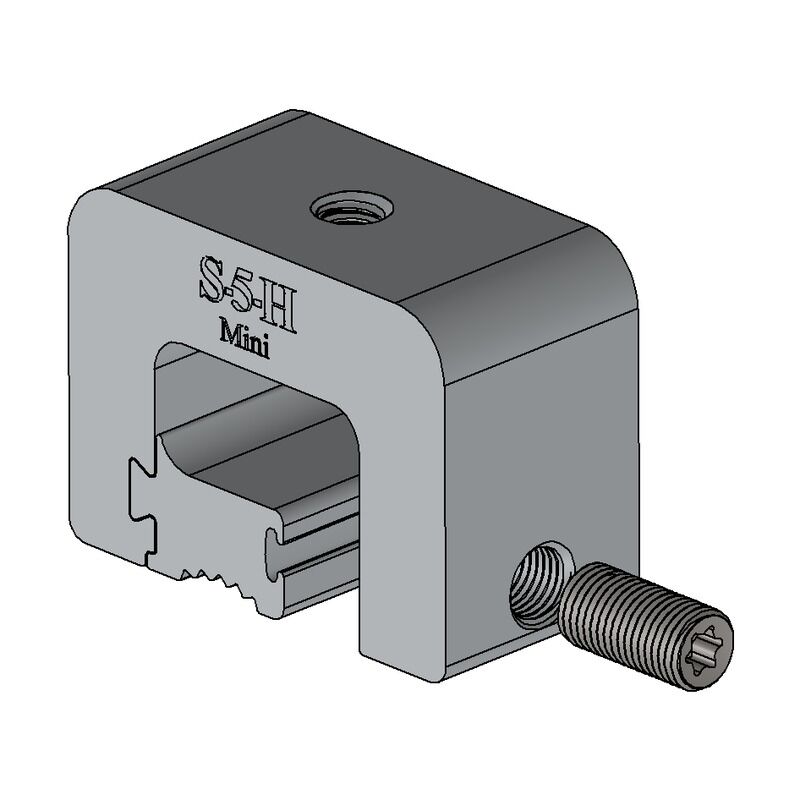

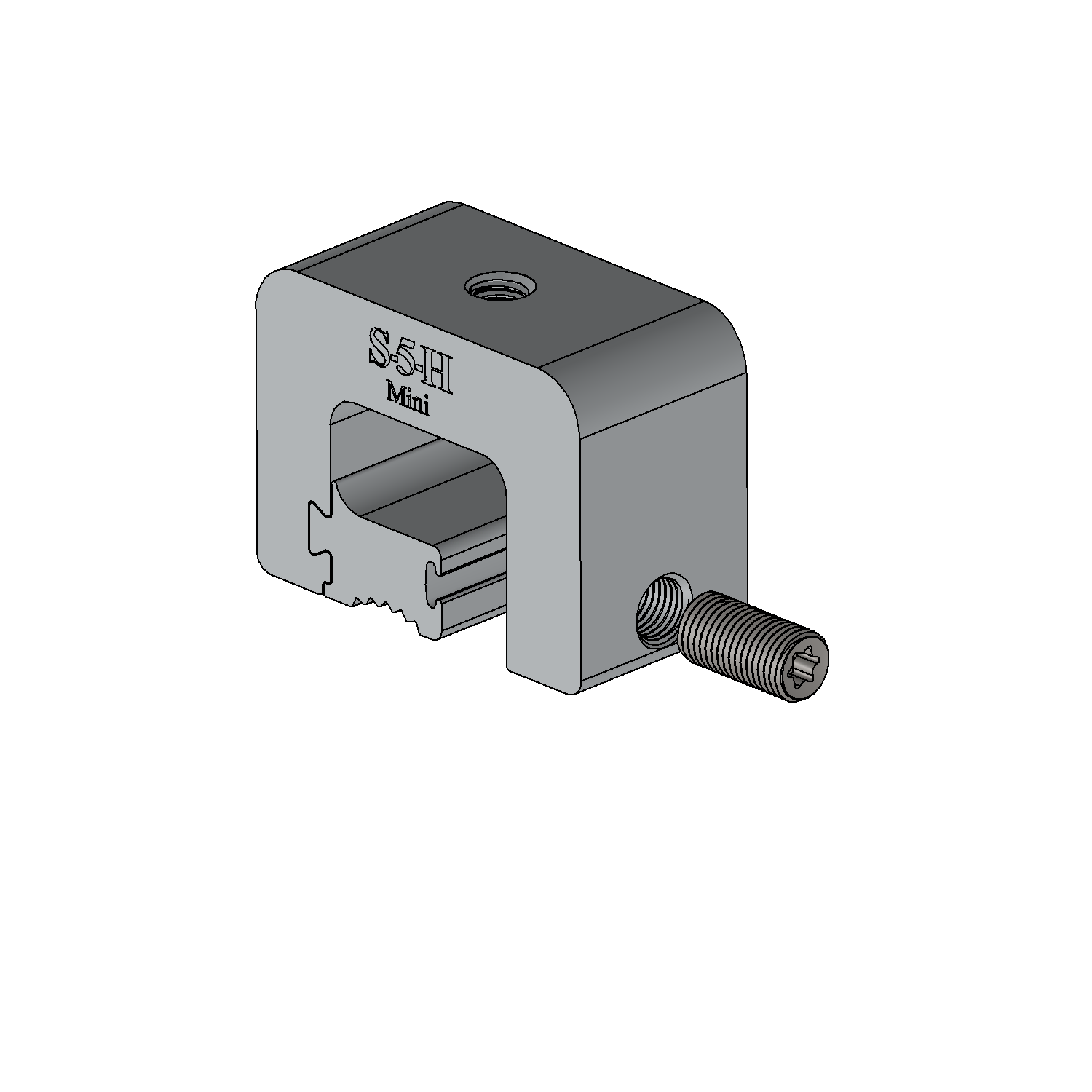

The S-5! S-5-H Mini Clamp ("H" for Horizontal) is a compact clamp designed to accommodate horizontal seams that are not fully closed, with side-install setscrews for fast installation anywhere along the rib. Limited stock available.

SUITS THESE ROOF PROFILES

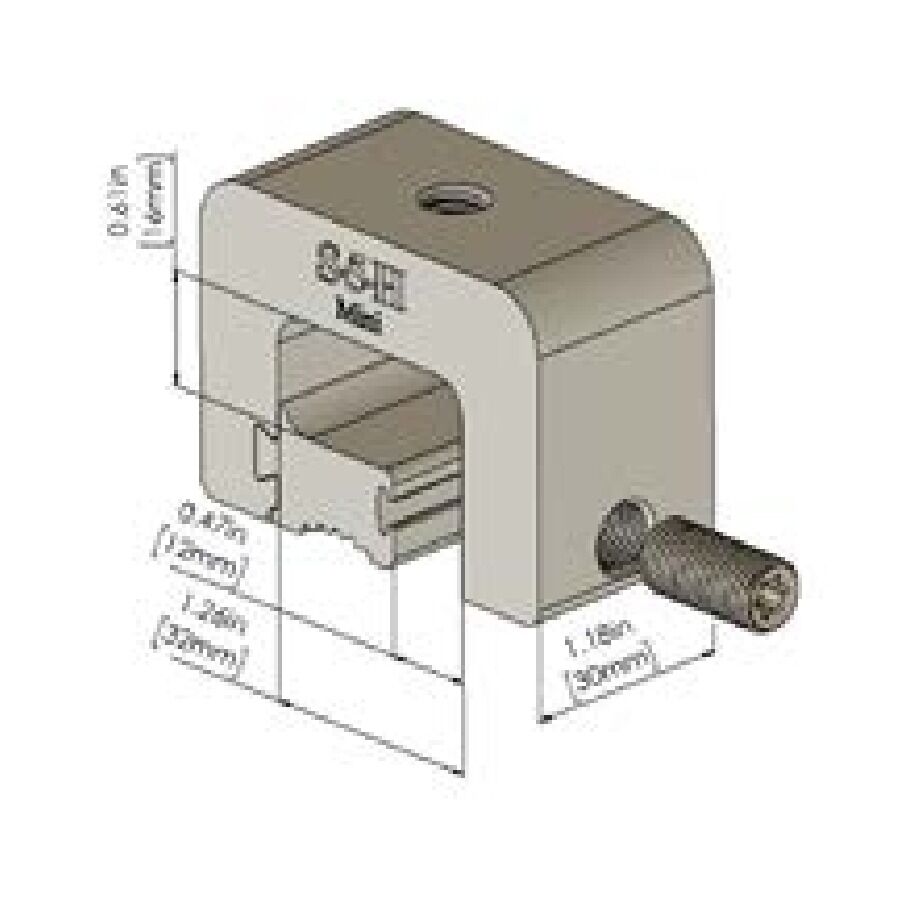

  • Horizontal seam profiles, seam projection between approximately 0.65in (16mm) and 0.80in (20mm)

SUPPLIED WITH

  • 1 x S-5-H Mini clamp body (two-piece design)
  • Stainless side-install setscrews

ALSO AVAILABLE

  • S-5! S-5-H Clamp (full size)
  • S-5! S-5-H90 Clamp / Mini
  • S-5! S-5-HR Clamp (Hi-Rib profiles)

(S-5-H-MINI-CLAMP)

S-5-H Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

  • Material: Aluminium body, stainless steel side-install setscrews
  • Roof profile compatibility: Horizontal seam profiles with seam projection approximately 0.65in (16mm) to 0.80in (20mm)
  • Attachment type: Non-penetrating, side-install setscrew compression
  • Supplied with: 1x S-5-H Mini clamp body (two-piece design), stainless side-install setscrews
  • Certification: ICC-ES AC472 compliant
SKU S-5-H-MINI-CLAMP
Brand S-5
  • Compact two-piece clamp designed for horizontal seams that are not fully closed
  • Side-install stainless setscrews allow fast installation anywhere along the rib
  • Mini body offers an economical option for lighter-duty attachments
  • Corrosion-resistant aluminium construction
  • Independently pull-up (normal-to-seam) load tested
