S-5! - S-5-U Clamp

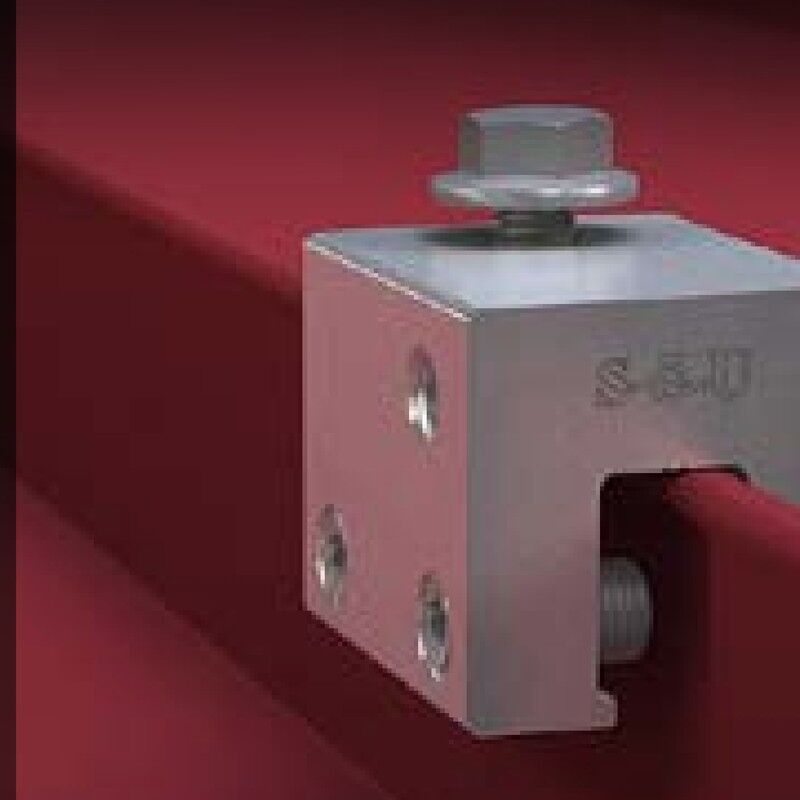

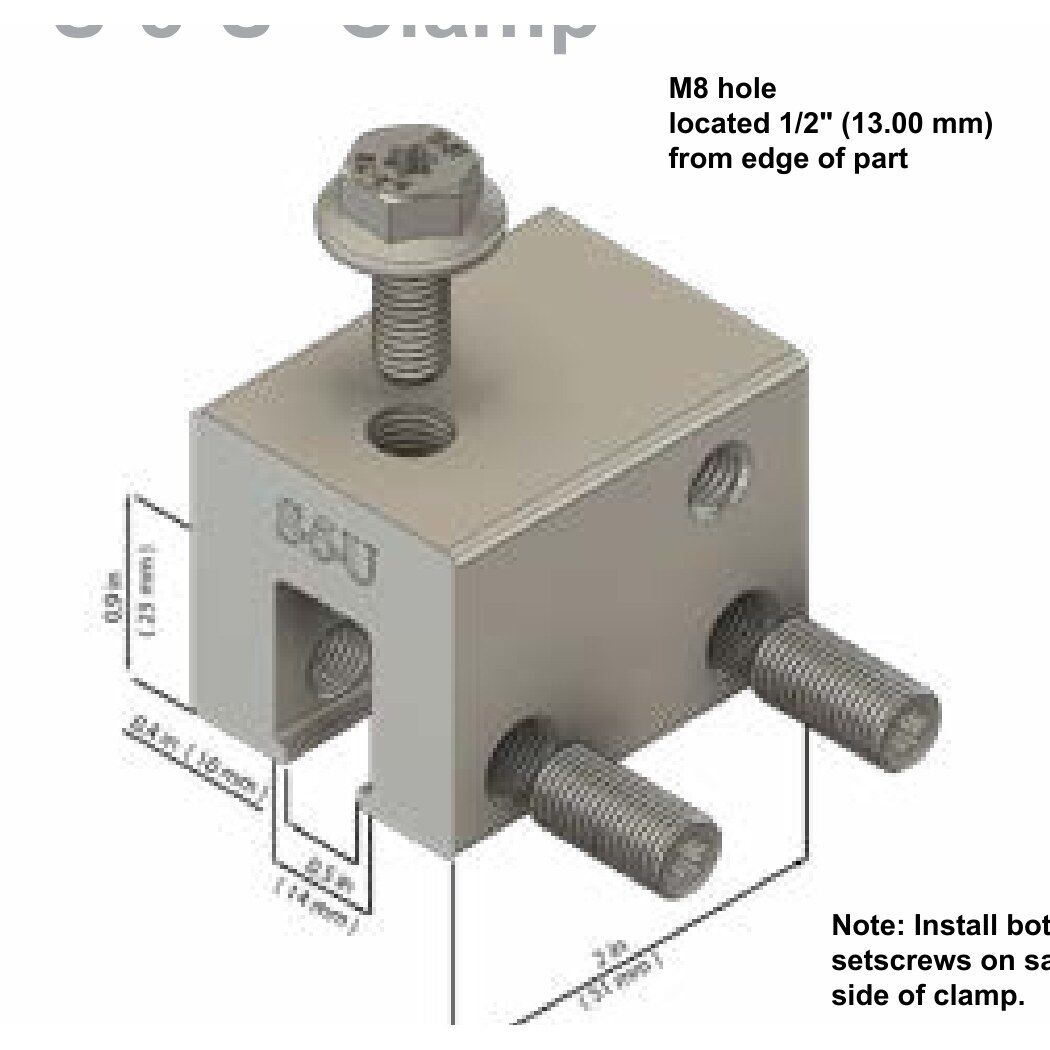

The S-5! S-5-U Clamp is our most versatile standing seam clamp, engineered to fit approximately 85% of standing seam metal roof profiles found in Australia. Its generous internal dimensioning accommodates the widest range of vertical seam profiles of any clamp in the S-5! range — and, rotated 90°, many horizontal seam profiles too.

SUITS THESE ROOF PROFILES

• Most vertical, machine-folded standing seam profiles (snap-lock and mechanically-seamed)
• Many horizontal seam profiles with seam projection ≥ 0.65in (16mm), rotated 90°
• Not suitable for face-fastened trapezoidal, corrugated, or hollow "batten" seam profiles

SUPPLIED WITH

• 1 x S-5-U clamp body
• Stainless setscrews and mounting hardware

ALSO AVAILABLE

• S-5! S-5-U Mini Clamp (compact version, sold separately)
