S-5! - S-5-D Grip

Part Number: S-5-D-GRIP-CLAMP-GX

(0 review)

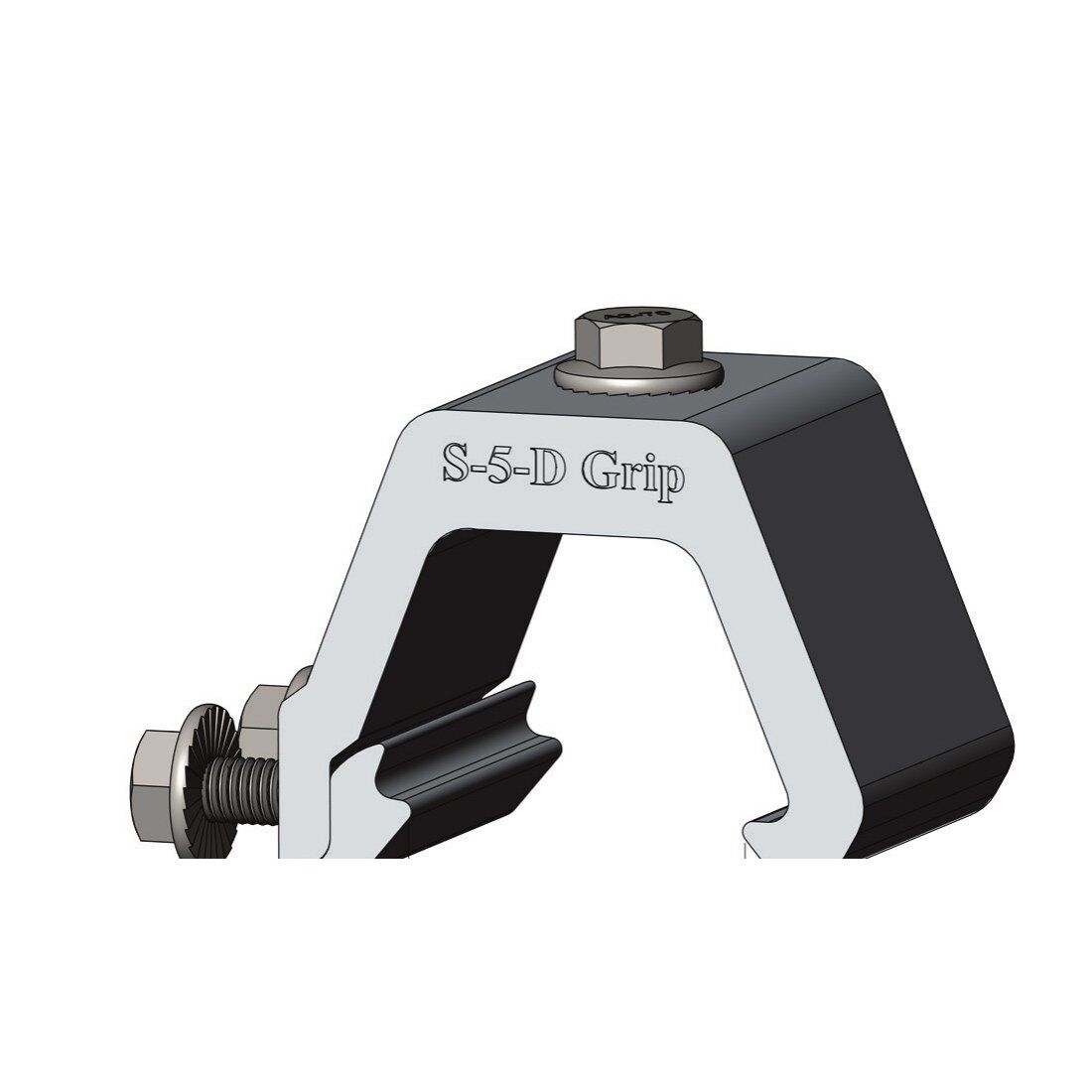

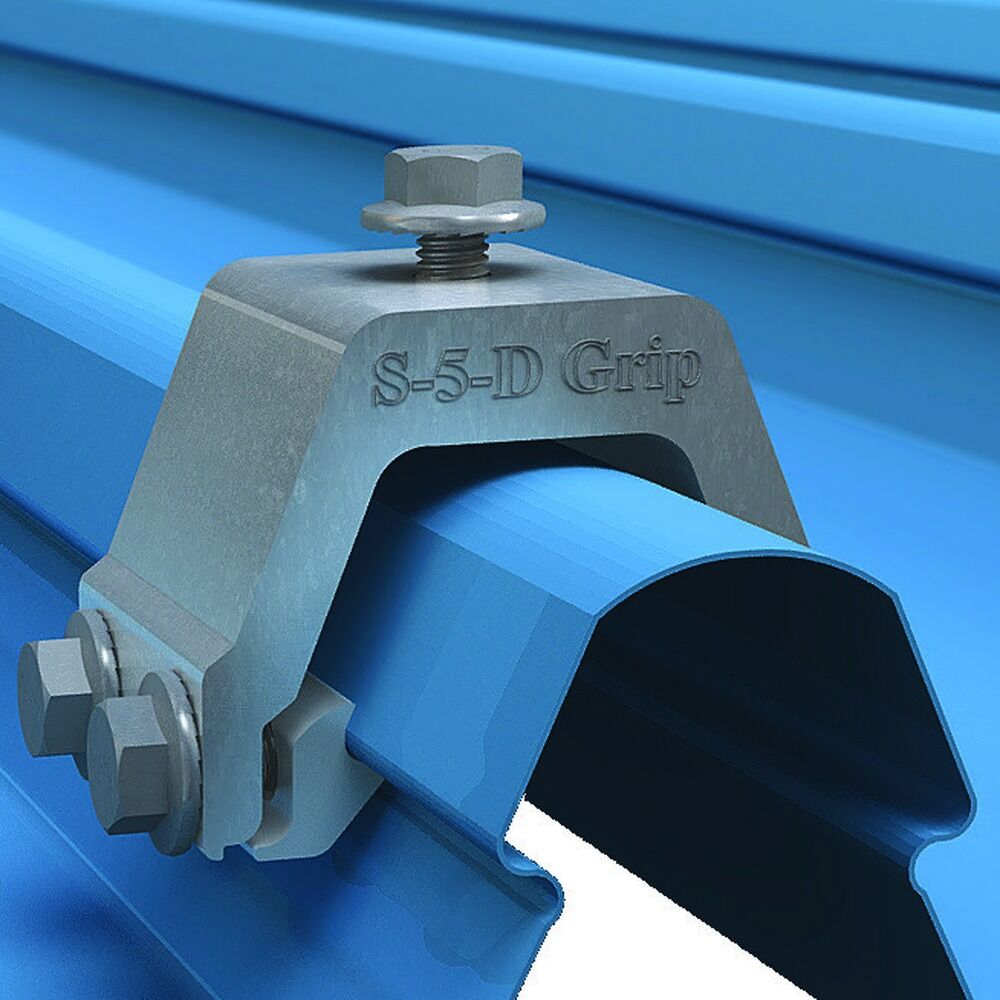

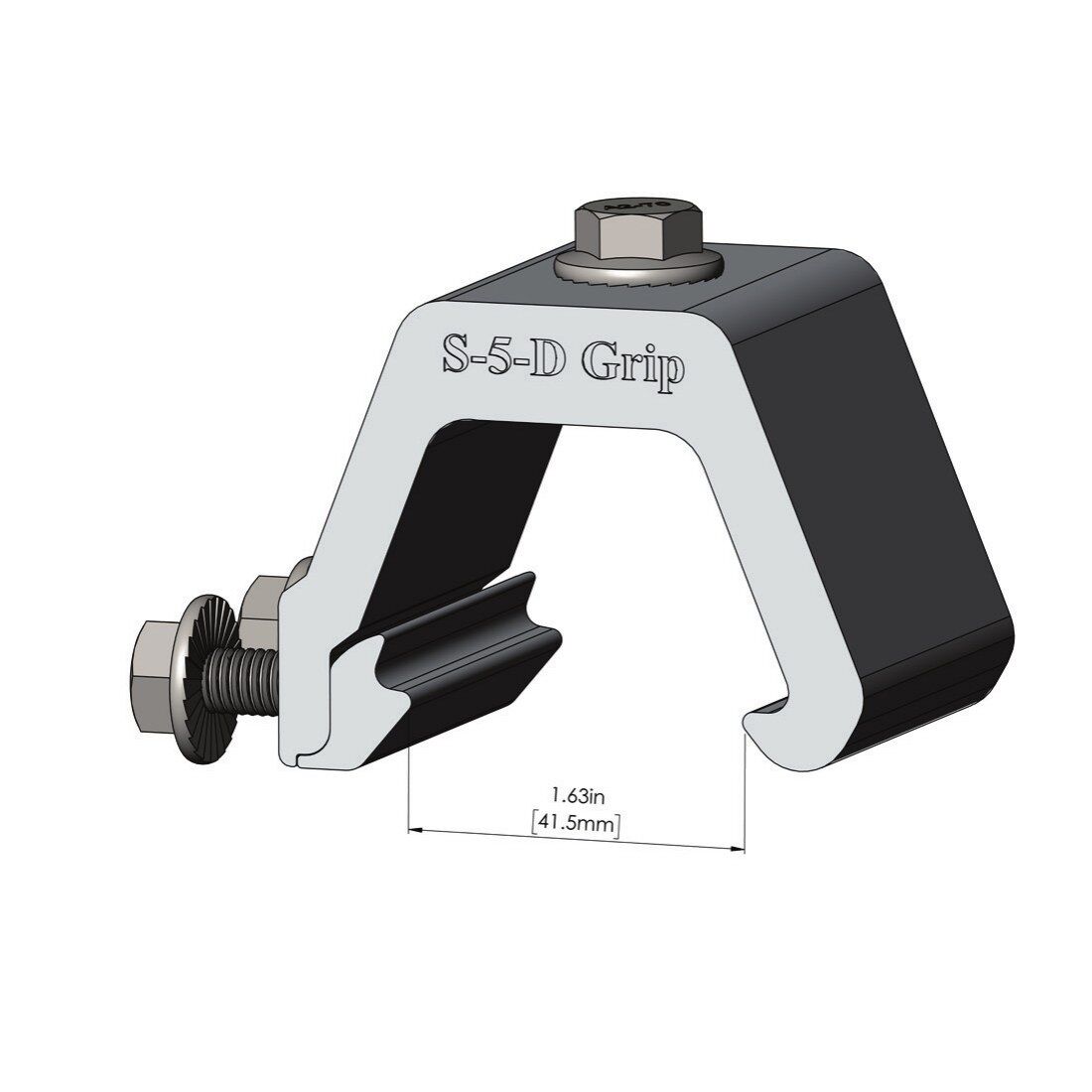

The S-5! S-5-D Grip is designed to fit DimonDek 630 and other bulb conceal-fix roof profiles. Unlike other S-5! clamps, the D Grip uses side-bolts rather than setscrews, with the mounting bolt sitting concentrically on the seam for increased load resistance. Requires an S-5-GX insert (sold separately) to suit your specific profile. Limited stock available.

SUITS THESE ROOF PROFILES

  • DimonDek 630
  • Other bulb conceal-fix roof profiles (insert-dependent)

SUPPLIED WITH

  • 1 x S-5-D Grip clamp body
  • Flanged-head side-bolts
  • Note: GX insert required, sold separately

ALSO AVAILABLE

  • S-5! S-5-D Grip Mini (compact, single side-bolt version)
  • S-5! S-5-GX 10 / GX 50 Insert

(S-5-D-GRIP-CLAMP-GX)

S-5-D Grip Clamp Installation Instruction Manual

Click Here Download Instruction Manual

Code Compliance Data (CCD)

Click Here Download CCD

  • Material: Corrosion-resistant aluminium body with flanged-head side-bolts
  • Roof profile compatibility: DimonDek 630 and other bulb conceal-fix profiles (insert-dependent)
  • Requires: S-5-GX insert (sold separately, fitted to match specific roof profile)
  • Attachment type: Non-penetrating, side-bolt compression concentric on the seam
  • Also available: S-5-D Grip Mini (compact, single side-bolt version)
SKU S-5-D-GRIP-CLAMP-GX
Brand S-5
  • Non-penetrating clamp purpose-built for DimonDek 630 and other bulb conceal-fix roof profiles
  • Uses side-bolts rather than setscrews, with the mounting bolt sitting concentrically on the seam for increased load resistance
  • Requires an S-5-GX insert (sold separately) matched to your specific profile
  • Full-size body for heavier-duty attachment loads
  • Suits mounting solar PV, snow guards, walkways and other rooftop appurtenances
